Edge Trims

Edge Trims, Angles & Starter Channels

Insulclad stock a range of UV resistant PVC and aluminium edge trims, angles and starter channels for use with the Insulclad Rendered Wall System.

Insulclad angles and edge trims should be used in accordance with the Insulclad Rendered Wall System Construction Drawings, which can be found in our Technical section. Specific profiles and sizes of trims are selected based on the system and panel thickness you have chosen.

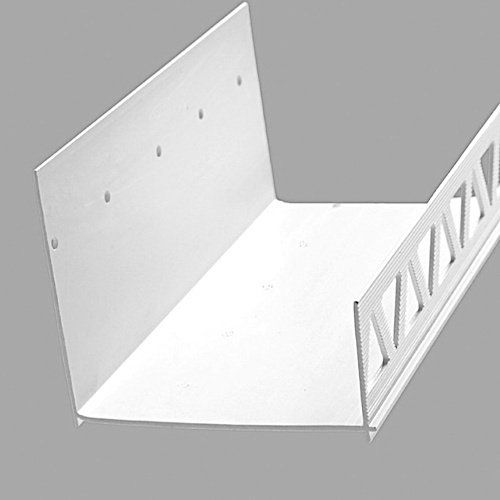

U-shaped channel for bottom panel

Available Sizes:

  • 50mm x 3m
  • 60mm x 3m
  • 75mm x 3m
  • 100mm x 3m
  • 140mm x 3m

Product Codes:

  • ICLD START50
  • ICLD START60
  • ICLD START75
  • ICLD START100
  • ICLD START140

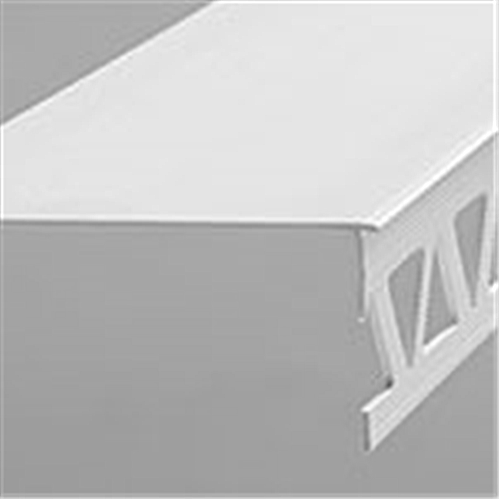

Reveal L Bead for window/door reveals

 Available Sizes:

  • 50mm x 3m
  • 60mm x 3m
  • 75mm x 3m
  • 140mm x 3m

Product Codes:

  • ICLD REVL50
  • ICLD REVL60
  • ICLD REVL75
  • ICLD REVL140

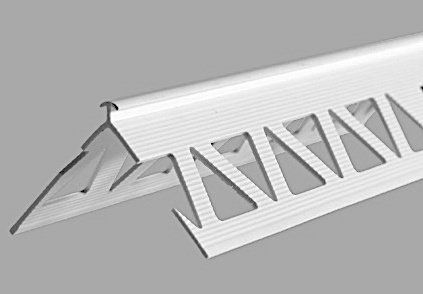

External corner bead - one size suits all

Size:

5mm x 3m

Product Code:

ICLD EXTCOR

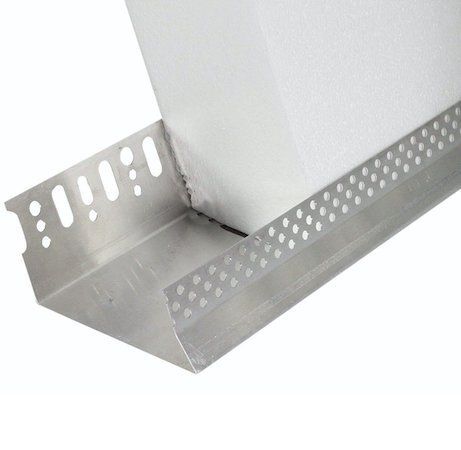

U-shaped aluminium starter channel

Size:

  • 75mm x 2.5m

Product Code:

  • ICLD ALSTART75

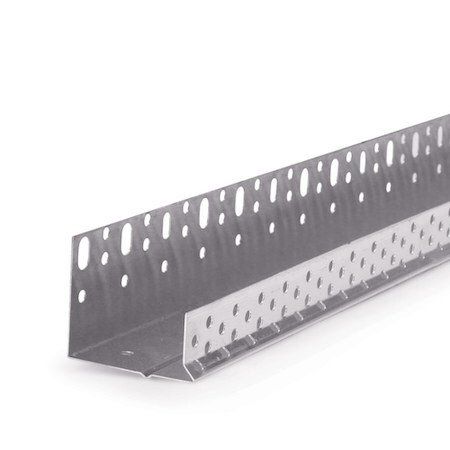

U-shaped aluminium starter channel

Available Sizes:

  • 75mm x 2.5m

Product Codes:

  • ICLD ALSTART

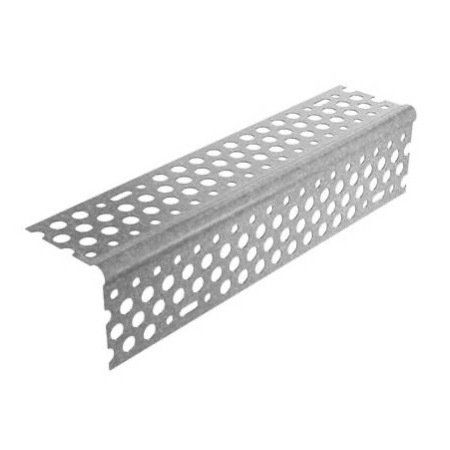

External corner bead - one size suits all

Size:

  • 3m – 3.5mm Build

Product Code:

  • ICLD ALEXCOR
